1.
[root@FriendlyARM /]# cat /bin/qt4
#!/bin/sh
if [ -e /etc/friendlyarm-ts-input.conf ] ; then
. /etc/friendlyarm-ts-input.conf
fi
true ${TSLIB_TSDEVICE:=/dev/touchscreen}
TSLIB_CONFFILE=/etc/ts.conf
export TSLIB_TSDEVICE
export TSLIB_CONFFILE
export TSLIB_PLUGINDIR=/usr/lib/ts
export TSLIB_CALIBFILE=/etc/pointercal
export QWS_DISPLAY=:1
export LD_LIBRARY_PATH=/usr/local/lib:$LD_LIBRARY_PATH
export PATH=/bin:/sbin:/usr/bin/:/usr/sbin:/usr/local/bin
if [ -c /dev/touchscreen ]; then
export QWS_MOUSE_PROTO="Tslib MouseMan:/dev/input/mice"
if [ ! -s /etc/pointercal ] ; then
rm /etc/pointercal
/usr/bin/ts_calibrate
fi
else
export QWS_MOUSE_PROTO="MouseMan:/dev/input/mice"
fi
export QWS_KEYBOARD=TTY:/dev/tty1
export HOME=/root

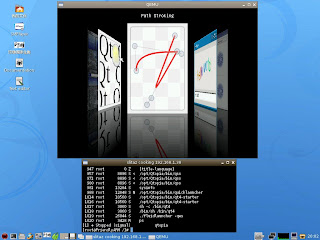

cd /usr/local/Trolltech/QtEmbedded-4.7.0-arm/demos/embedded/fluidlauncher
./fluidlauncher -qws
hotplug
2.
[root@FriendlyARM /]# cat /opt/Qtopia/apps/FriendlyARM/qt4-starter.desktop
[Translation]
File=QtopiaSettings
Context=qt4-starter
Comment[Desktop Entry/Name]=Use soft hyphen (char U00AD) to indicate hyphenation
[Desktop Entry]
Exec=qt4-starter
Icon=qt4-starter
Type=Application
Name[]=Start Qt4.7.0
CanFastload=0
3.
[root@FriendlyARM /]# ls -l /opt/Qtopia/bin/qt4-starter
-rwxr-xr-x 1 root root 30832 Aug 16 2010 /opt/Qtopia/bin/qt4-starter
[root@FriendlyARM /]#
4.
[root@FriendlyARM /]# cat /etc/init.d/rcS
#! /bin/sh
PATH=/sbin:/bin:/usr/sbin:/usr/bin:/usr/local/bin:
runlevel=S
prevlevel=N
umask 022
export PATH runlevel prevlevel
#
# Trap CTRL-C &c only in this shell so we can interrupt subprocesses.
#
trap ":" INT QUIT TSTP
/bin/hostname FriendlyARM
/bin/mount -n -t proc none /proc
/bin/mount -n -t sysfs none /sys
/bin/mount -n -t usbfs none /proc/bus/usb
/bin/mount -t ramfs none /dev
echo /sbin/mdev > /proc/sys/kernel/hotplug
/sbin/mdev -s
/bin/hotplug
# mounting file system specified in /etc/fstab
mkdir -p /dev/pts
mkdir -p /dev/shm
/bin/mount -n -t devpts none /dev/pts -o mode=0622
/bin/mount -n -t tmpfs tmpfs /dev/shm
/bin/mount -n -t ramfs none /tmp
/bin/mount -n -t ramfs none /var
mkdir -p /var/empty
mkdir -p /var/log
mkdir -p /var/lock
mkdir -p /var/run
mkdir -p /var/tmp
/sbin/hwclock -s
syslogd
/etc/rc.d/init.d/netd start
echo " " > /dev/tty1
echo "Starting networking..." > /dev/tty1
sleep 1
/etc/rc.d/init.d/httpd start
echo " " > /dev/tty1
echo "Starting web server..." > /dev/tty1
sleep 1
/etc/rc.d/init.d/leds start
echo " " > /dev/tty1
echo "Starting leds service..." > /dev/tty1
echo " "
sleep 1
/sbin/ifconfig lo 127.0.0.1
/etc/init.d/ifconfig-eth0
/bin/qtopia &
echo " " > /dev/tty1
echo "Starting Qtopia, please waiting..." > /dev/tty1
[root@FriendlyARM /]#
5.
00005a70 01 00 02 00 70 69 70 65 00 70 73 65 75 64 6f 20 |....pipe.pseudo |
00005a80 66 6f 72 6b 00 65 78 65 63 20 66 6f 72 6b 00 2f |fork.exec fork./|
00005a90 62 69 6e 2f 71 74 34 00 68 6f 74 70 6c 75 67 00 |bin/qt4.hotplug.|
00005aa0 32 61 63 74 69 76 61 74 65 64 28 69 6e 74 29 00 |2activated(int).|
00005ab0 31 71 75 69 74 28 29 00 70 69 64 20 25 64 20 63 |1quit().pid %d c|
00005ac0 6c 65 61 6e 65 64 0a 00 62 61 64 20 63 68 69 6c |leaned..bad chil|
00005ad0 64 20 73 69 67 6e 61 6c 3f 0a 00 51 57 69 64 67 |d signal?..QWidg|
00005ae0 65 74 00 31 52 65 70 61 69 6e 74 41 6c 6c 28 29 |et.1RepaintAll()|
00005b50 40 be 00 00 00 00 00 00 71 74 34 2d 73 74 61 72 |@.......qt4-star|
00005b60 74 65 72 00 73 65 74 44 6f 63 75 6d 65 6e 74 28 |ter.setDocument(|
00005b70 63 6f 6e 73 74 20 51 53 74 72 69 6e 67 26 29 00 |const QString&).|
00005b80 54 4d 61 69 6e 46 6f 72 6d 42 61 73 65 00 00 00 |TMainFormBase...|
